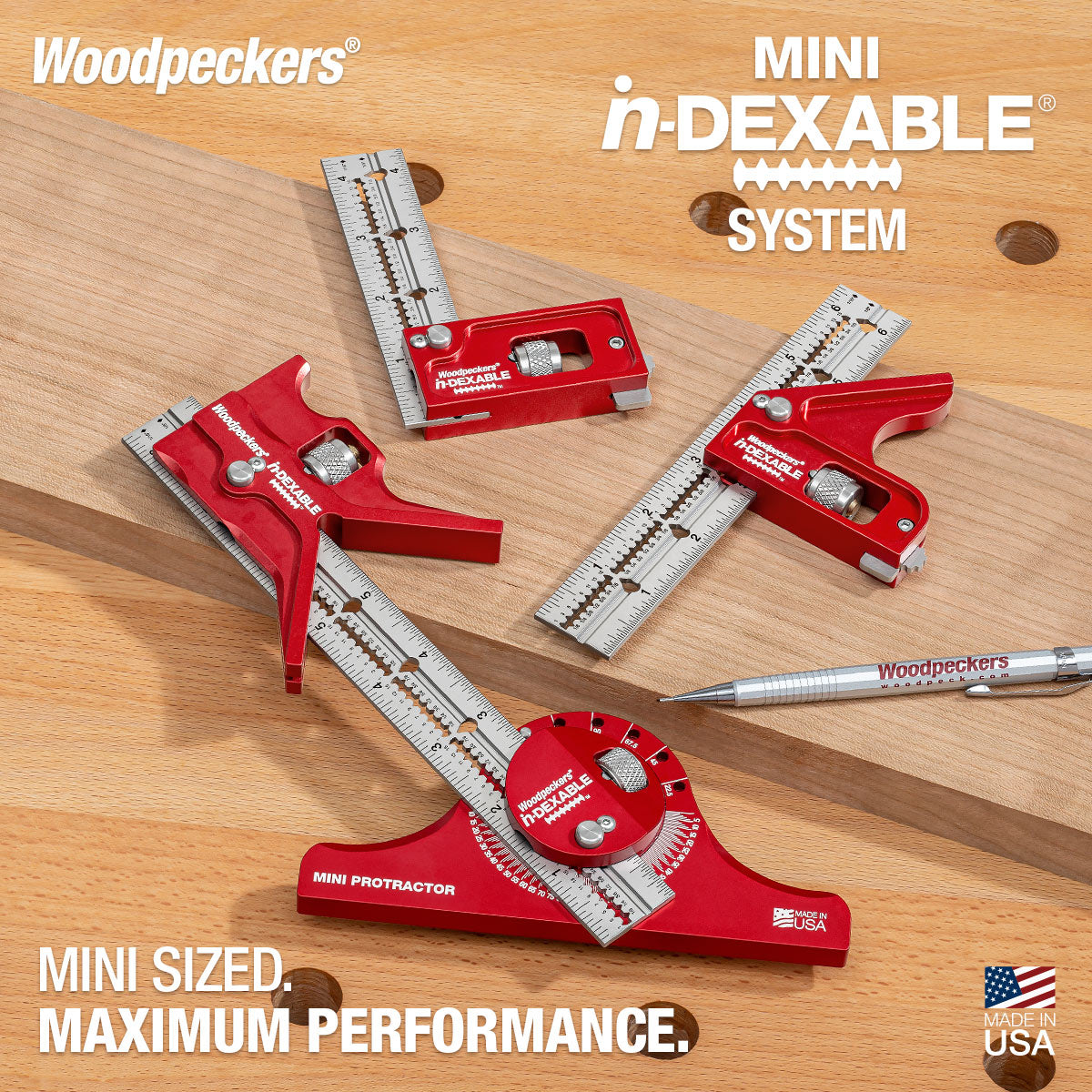

Mini In-DEXABLE Square System

Versatile Tools You’ll Want Right in Your Pocket

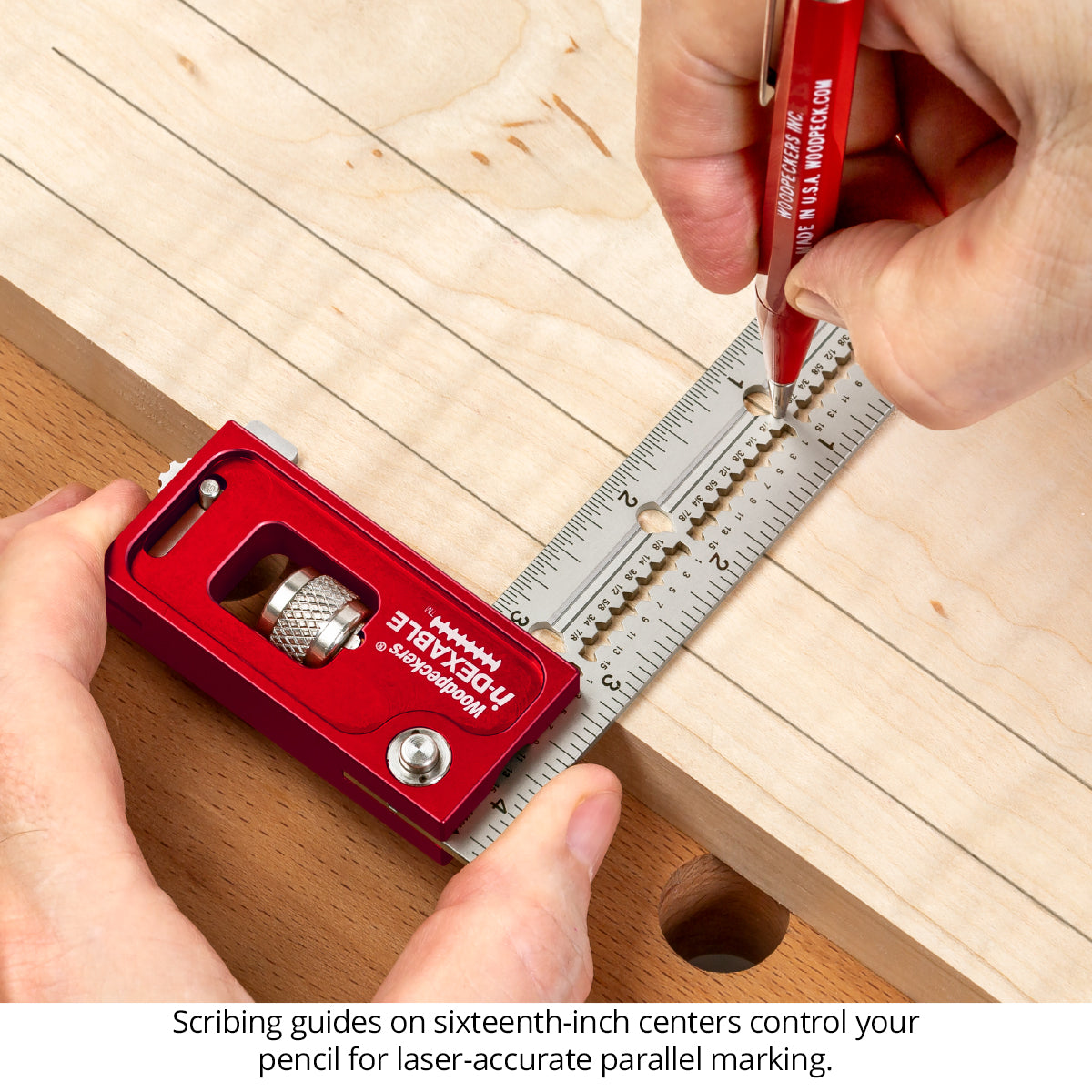

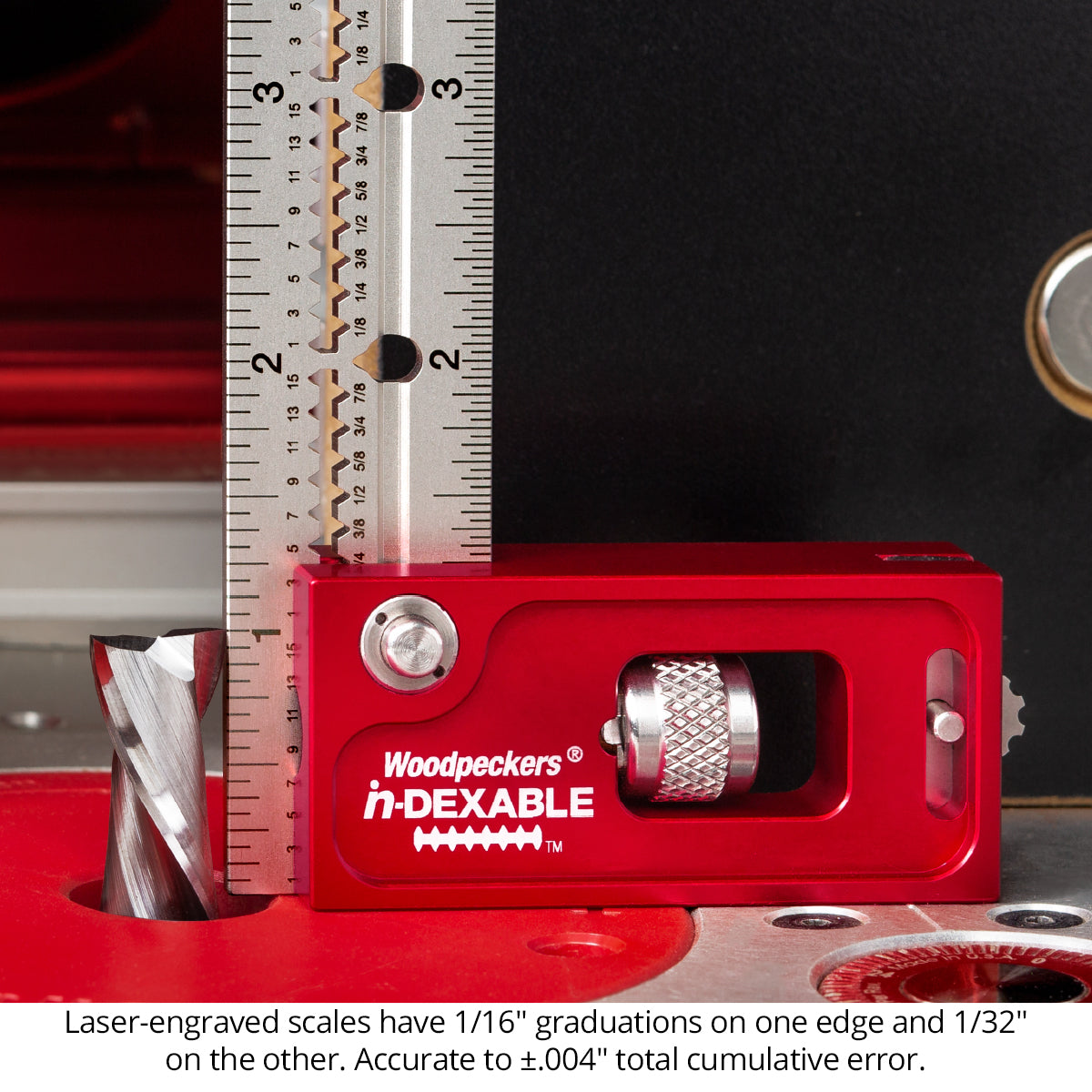

The feature we think you’ll find most useful in all the MINI in-DEXABLE System is the laser-cut scribing guides cut every 1/16" along the blade (every 1mm on the metric versions). The guides are just the right size to capture a pencil tip for highly accurate parallel scribing. But where’s the “zero point” for the scribing guides? How do you get a true starting point with a head that moves? Just depress the spring-loaded index pin and lock the head at any full inch…now your scribing guides are dialed in and ready for accurate parallel marking.

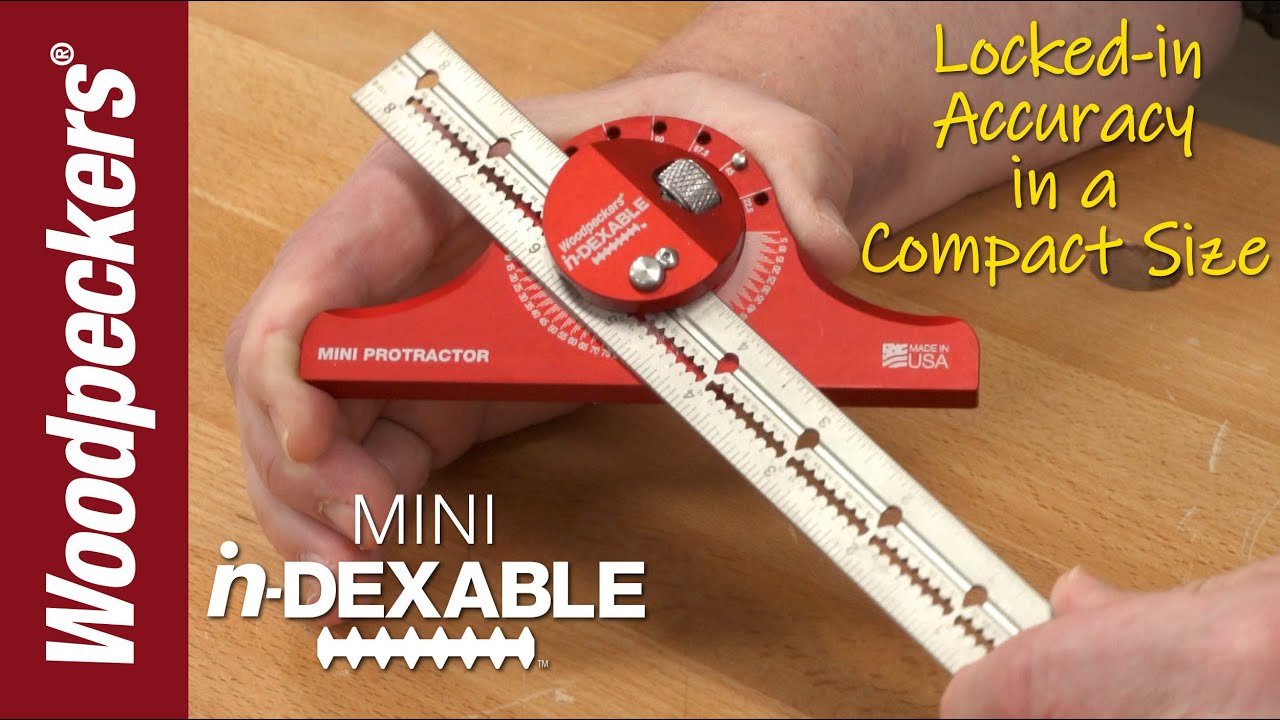

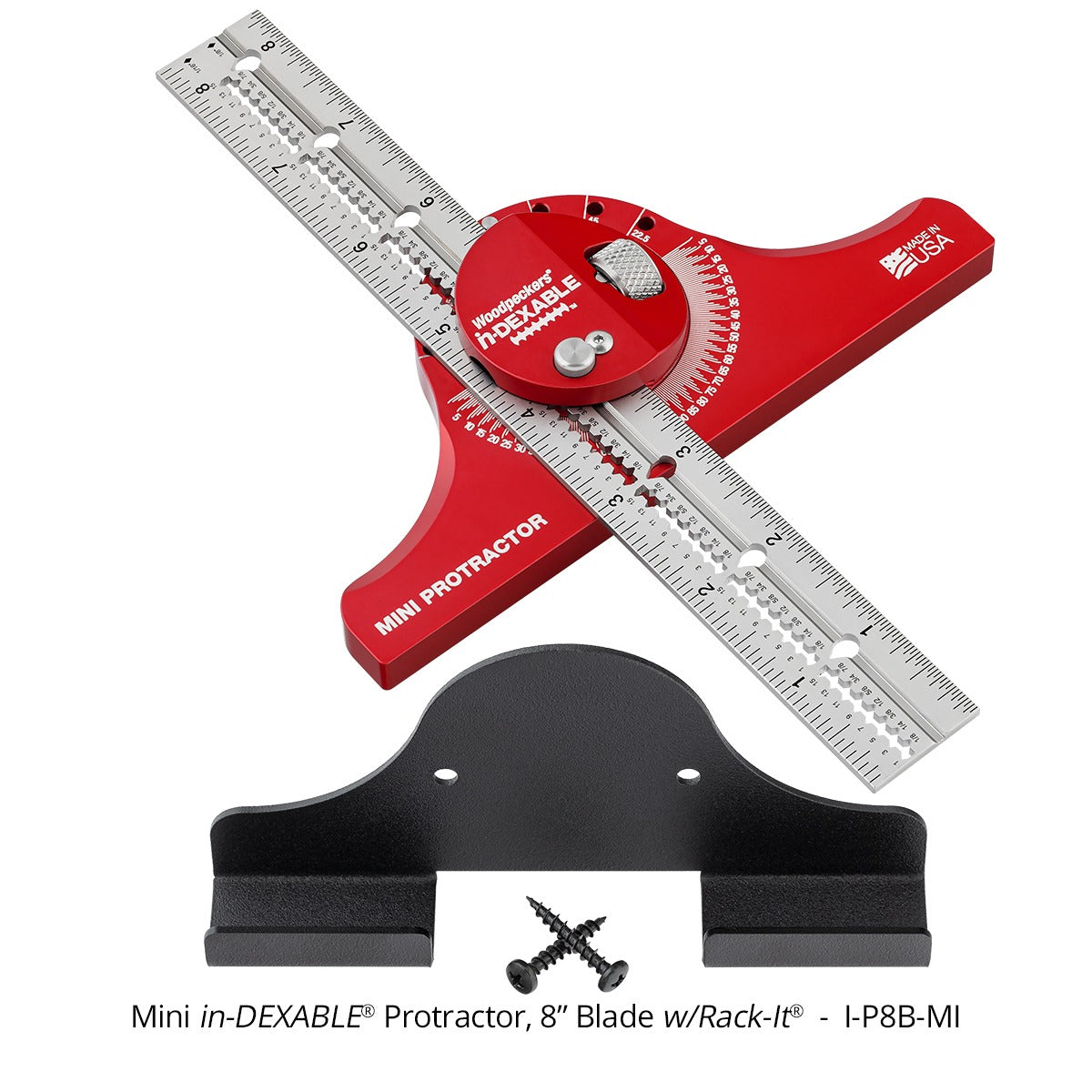

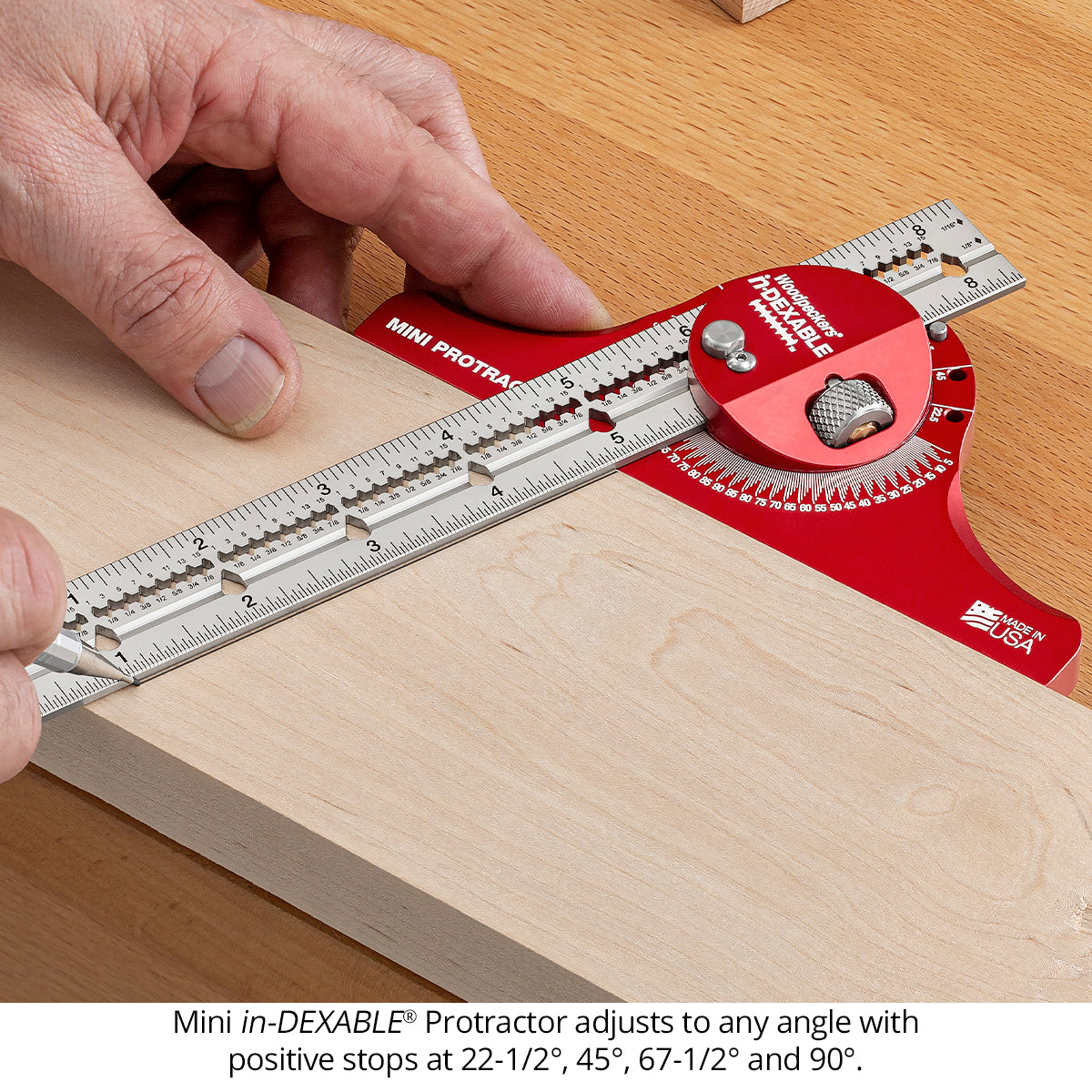

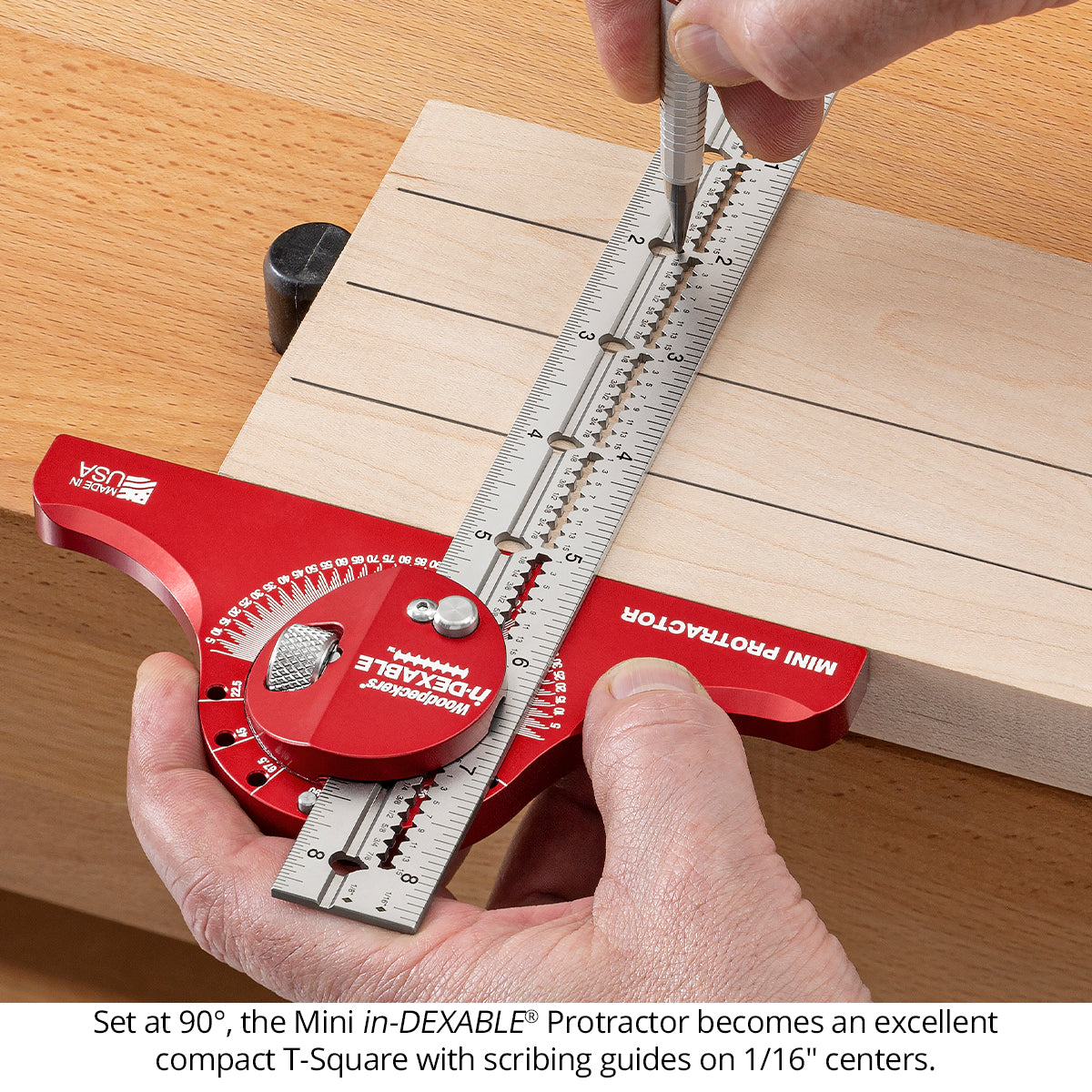

The MINI Protractor Head features the same silky smooth angle adjustment mechanism found in the full-size in-DEXABLE protractor head…just smaller. The laser-engraved angle scale is crisp and easy to read. Just line the edge of the blade to the scale and you’re dialed in. For standard angles, the indexing pin makes it even easier...just bring the blade against the index pin and lock it up. With the head locked at 90° you have a compact T-Square with scribing guides.

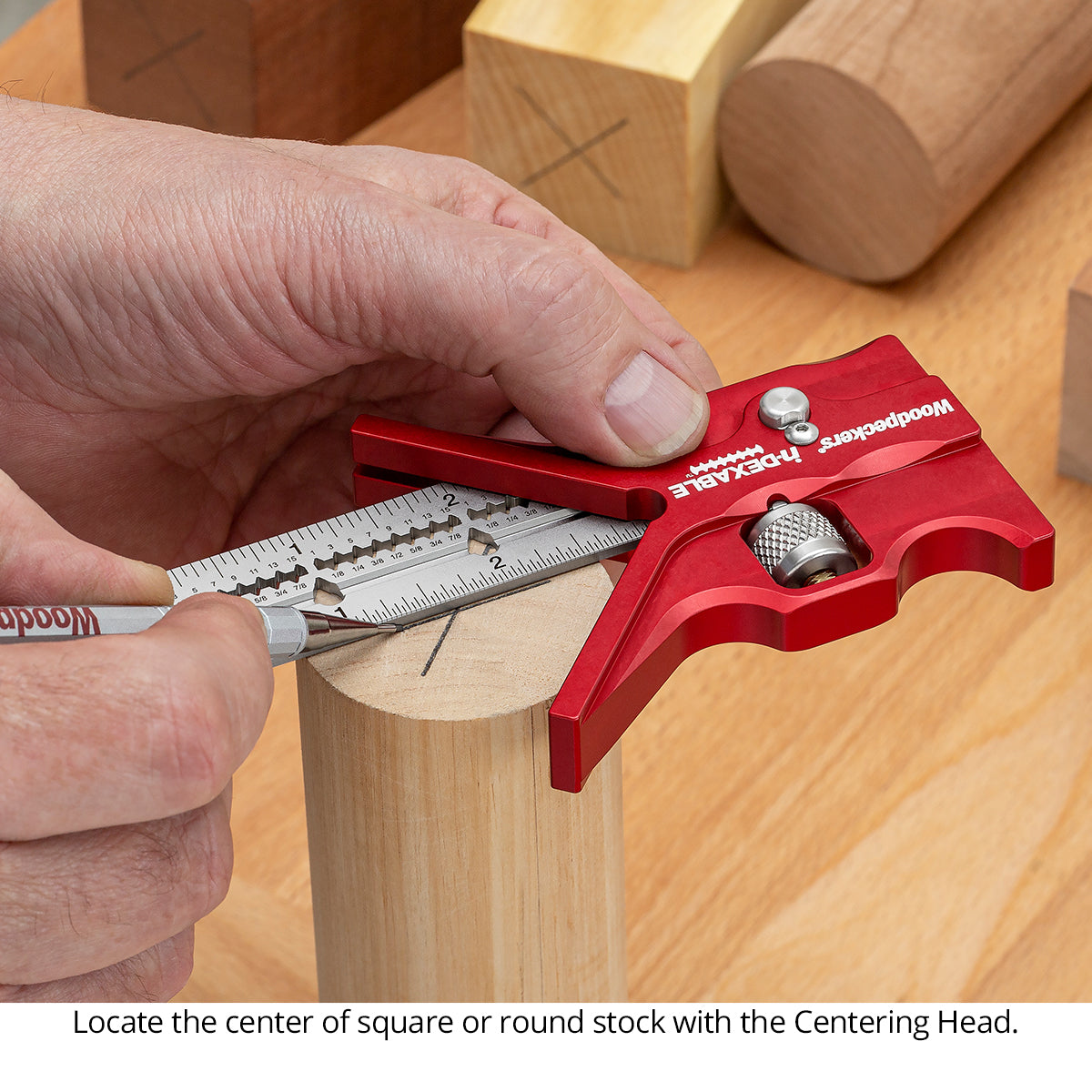

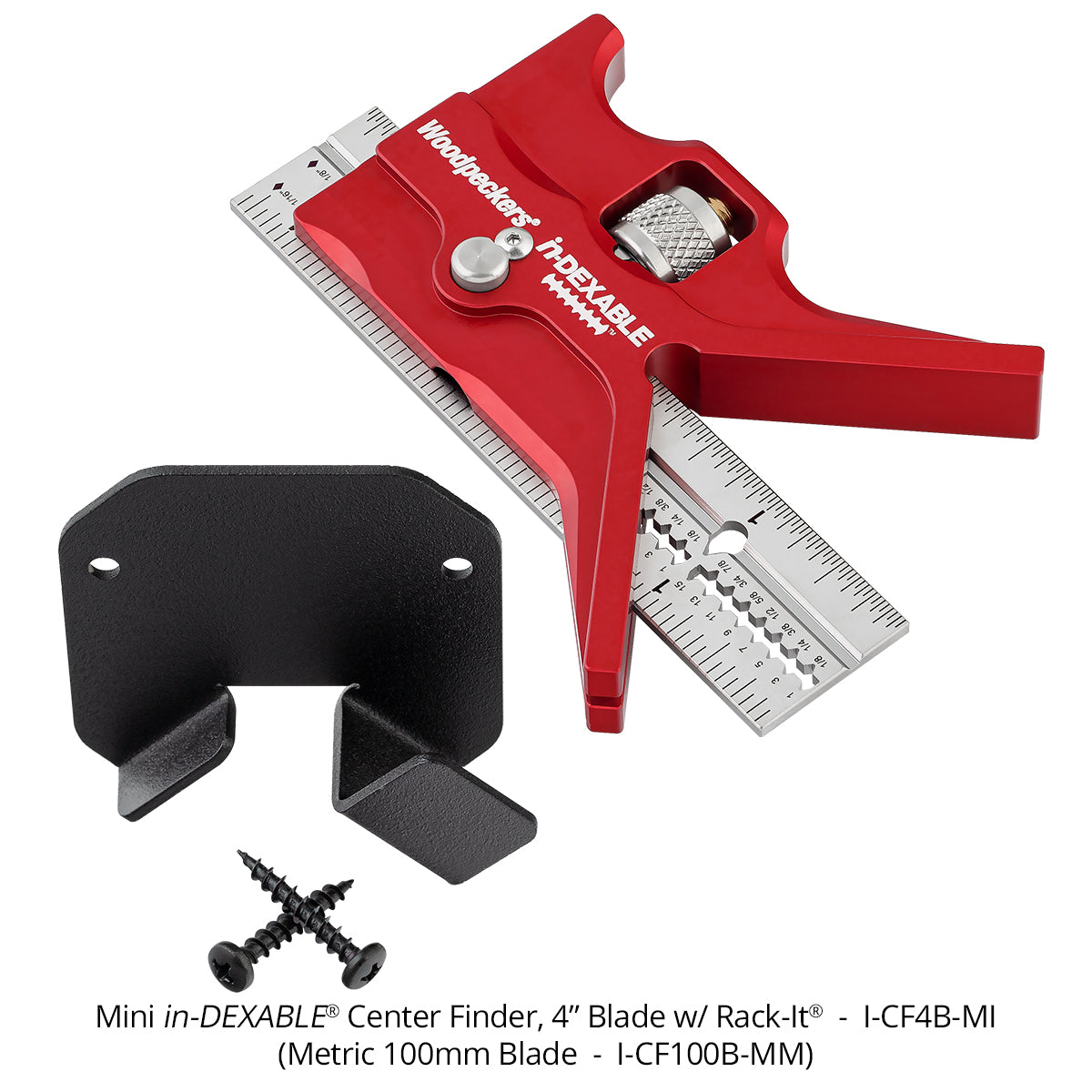

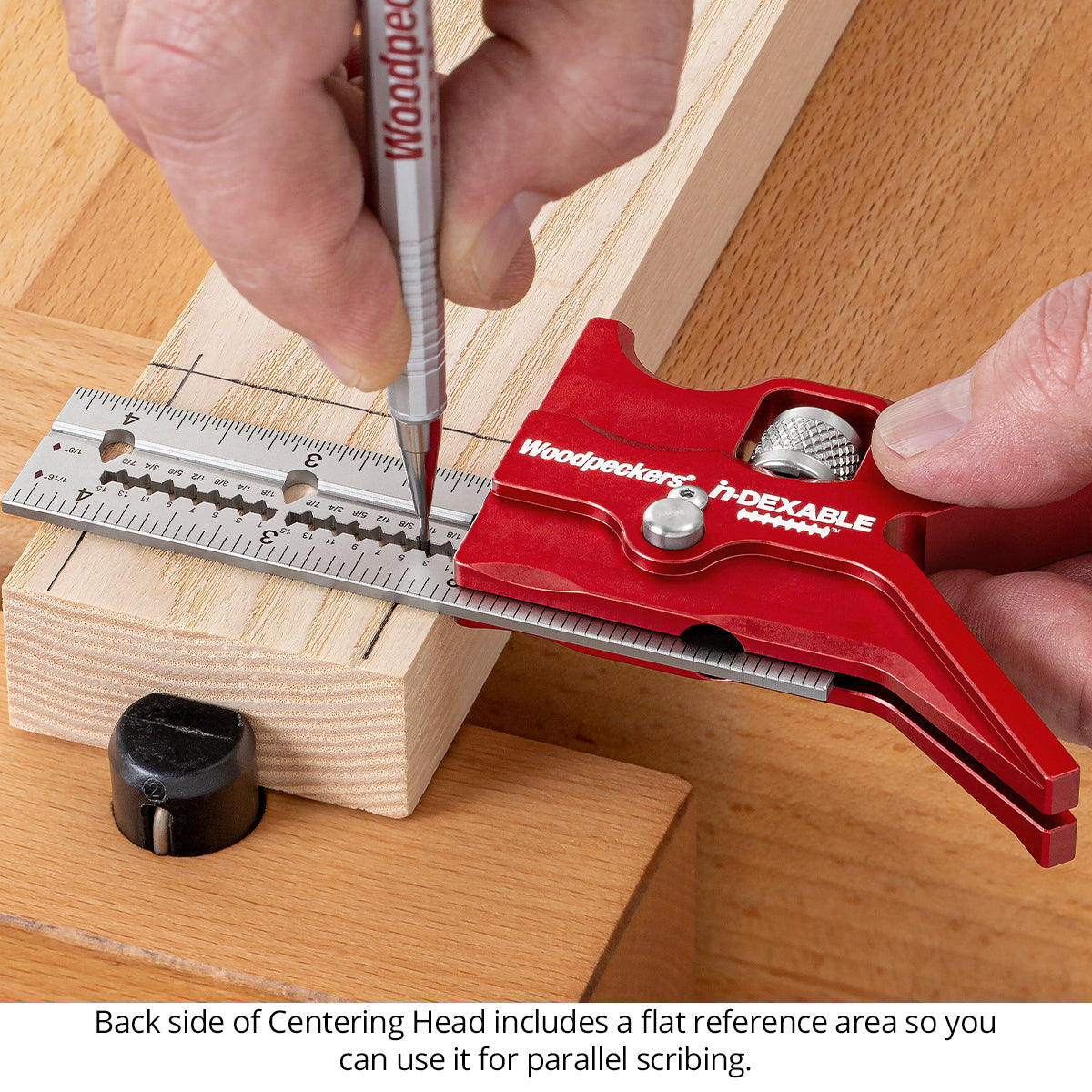

The MINI Centering Head attaches to the blade at 45°. Just scribe across the end of your square stock from 2 corners and the intersection is the center. If the stock is out of square, just mark from all 4 corners and the “box” created contains the center of the largest true square. You can also locate the center of round stock in a similar fashion. Just position the Centering Head on the circle in two different spots and you’ll have the center. The back side of the Centering Head is squared off so you can use the indexing feature and the scribing guides without swapping to a different head.

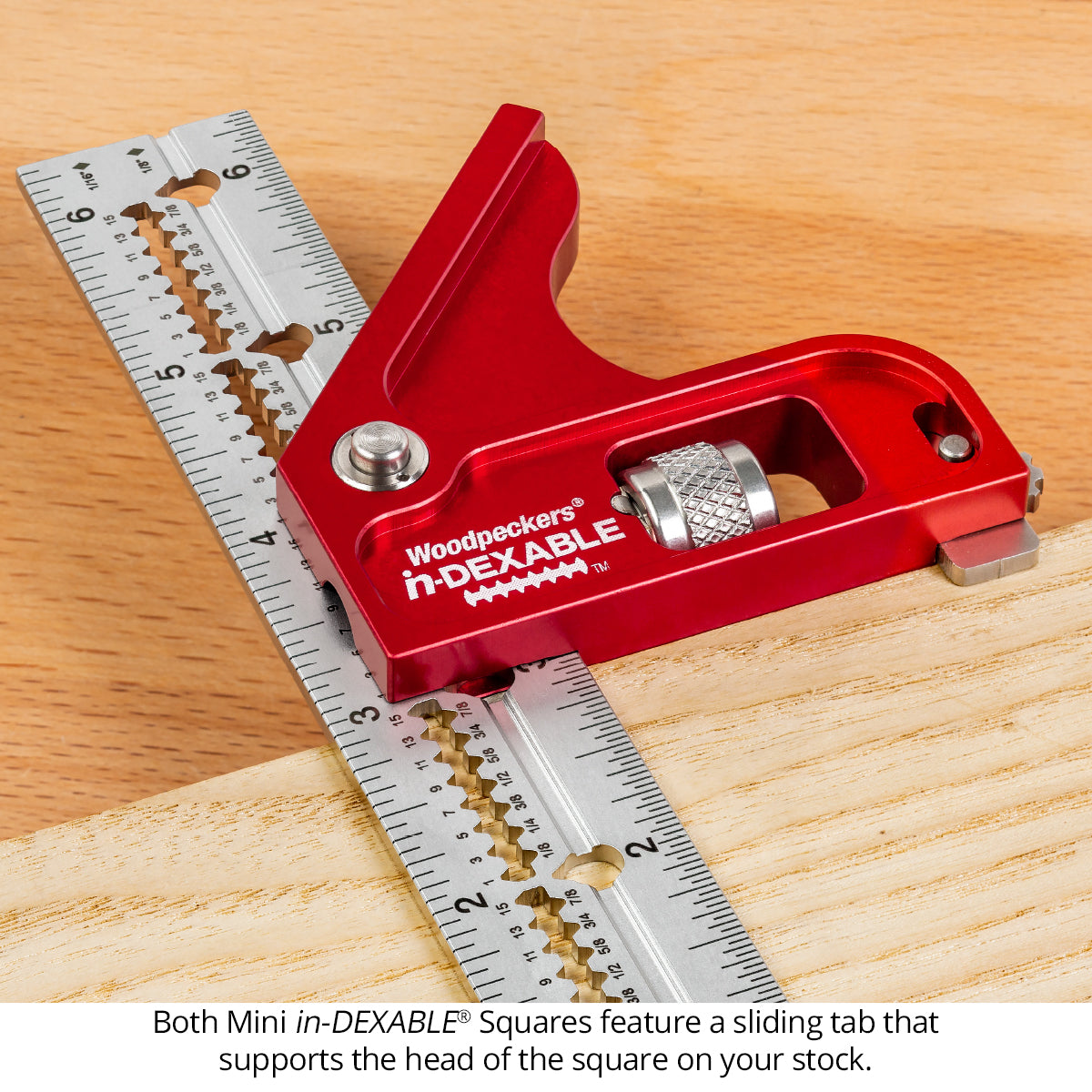

For years, one of our customers’ favorite features of our fixed-head squares has been the shoulder that keeps the square in position on the edge of your stock. We’ve added that to our combination and double squares, too. Just slide the head support out to keep the head of your square perfectly positioned without needing three hands. If it’s in the way, it just slides back into the head and doesn’t interfere with the alignment of the square in any way.

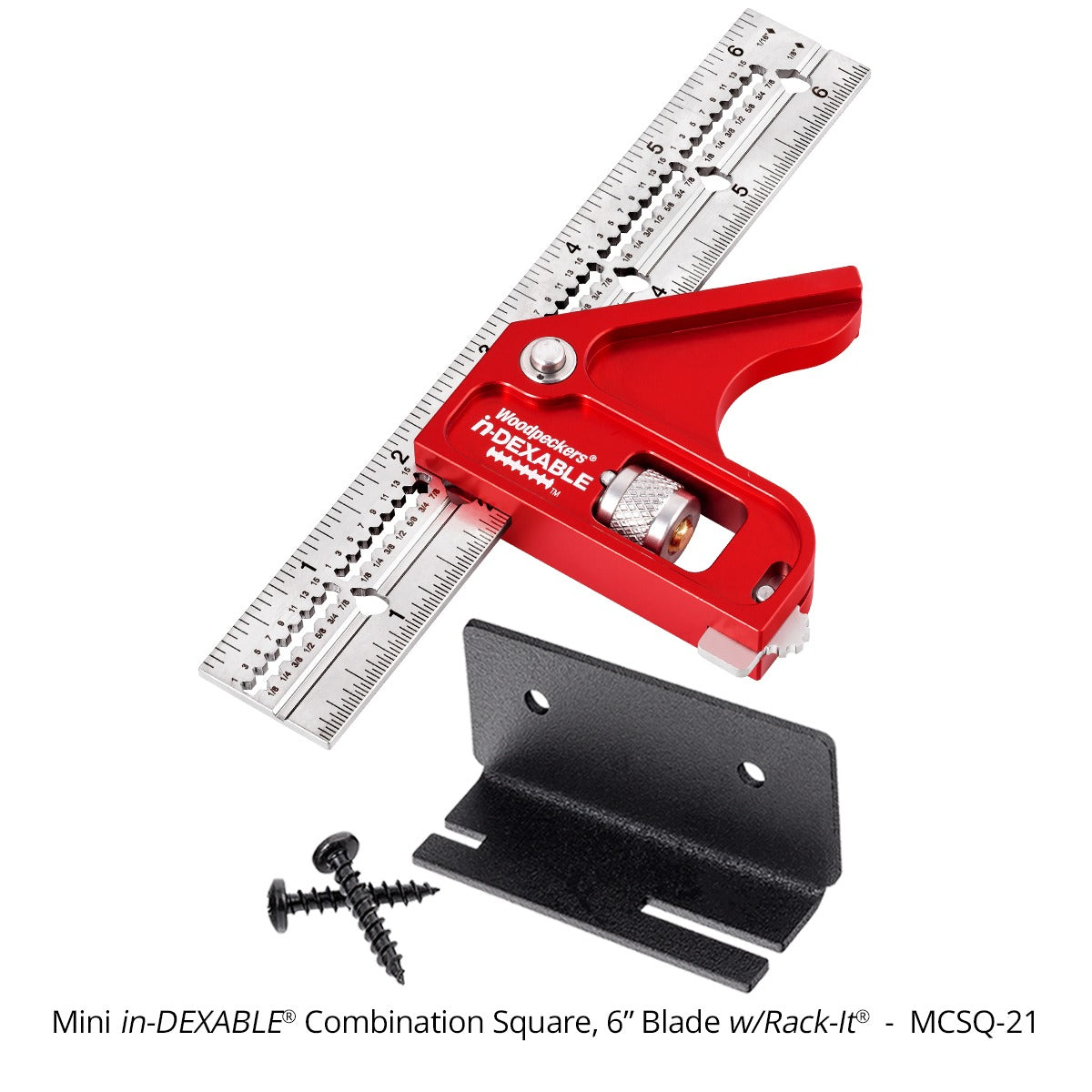

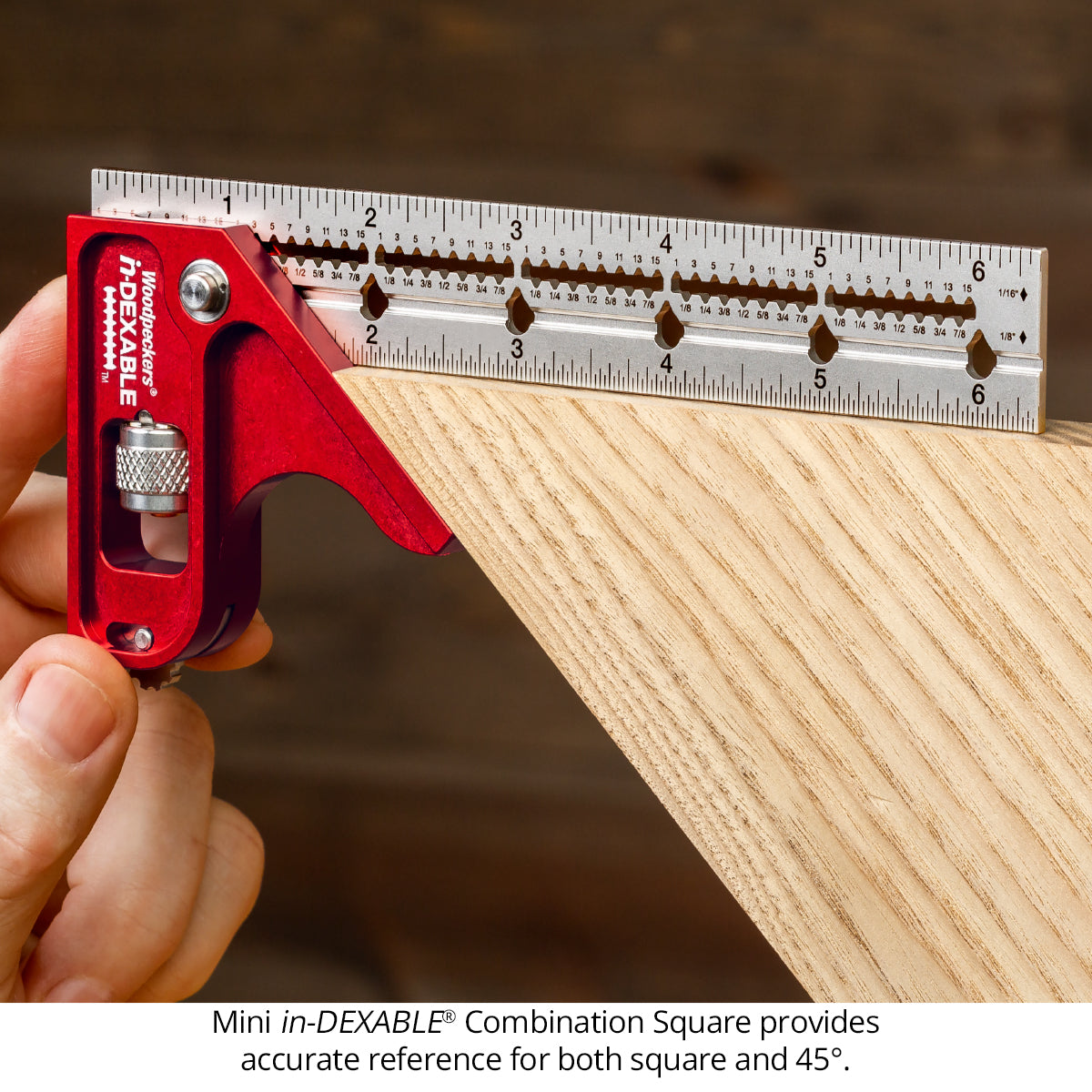

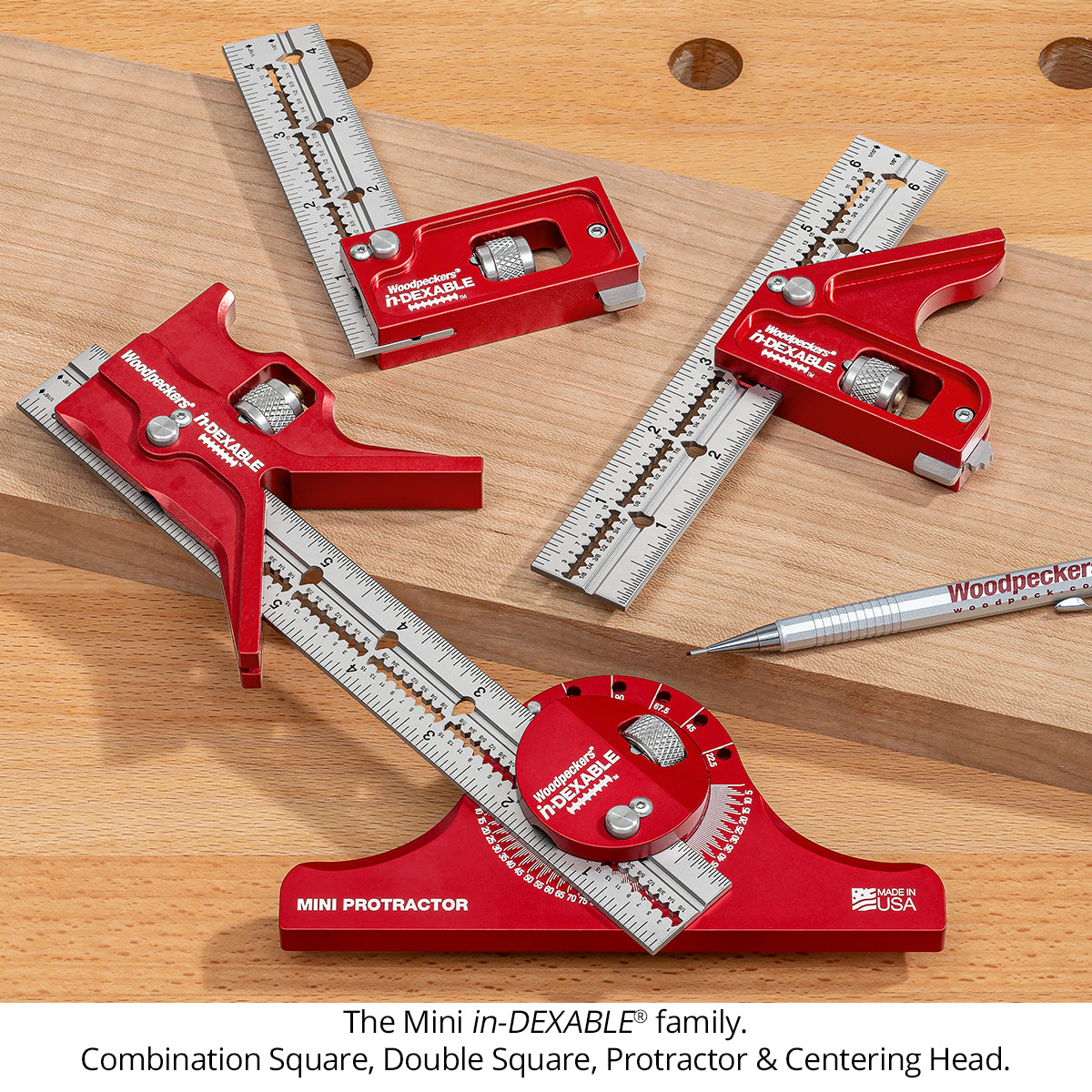

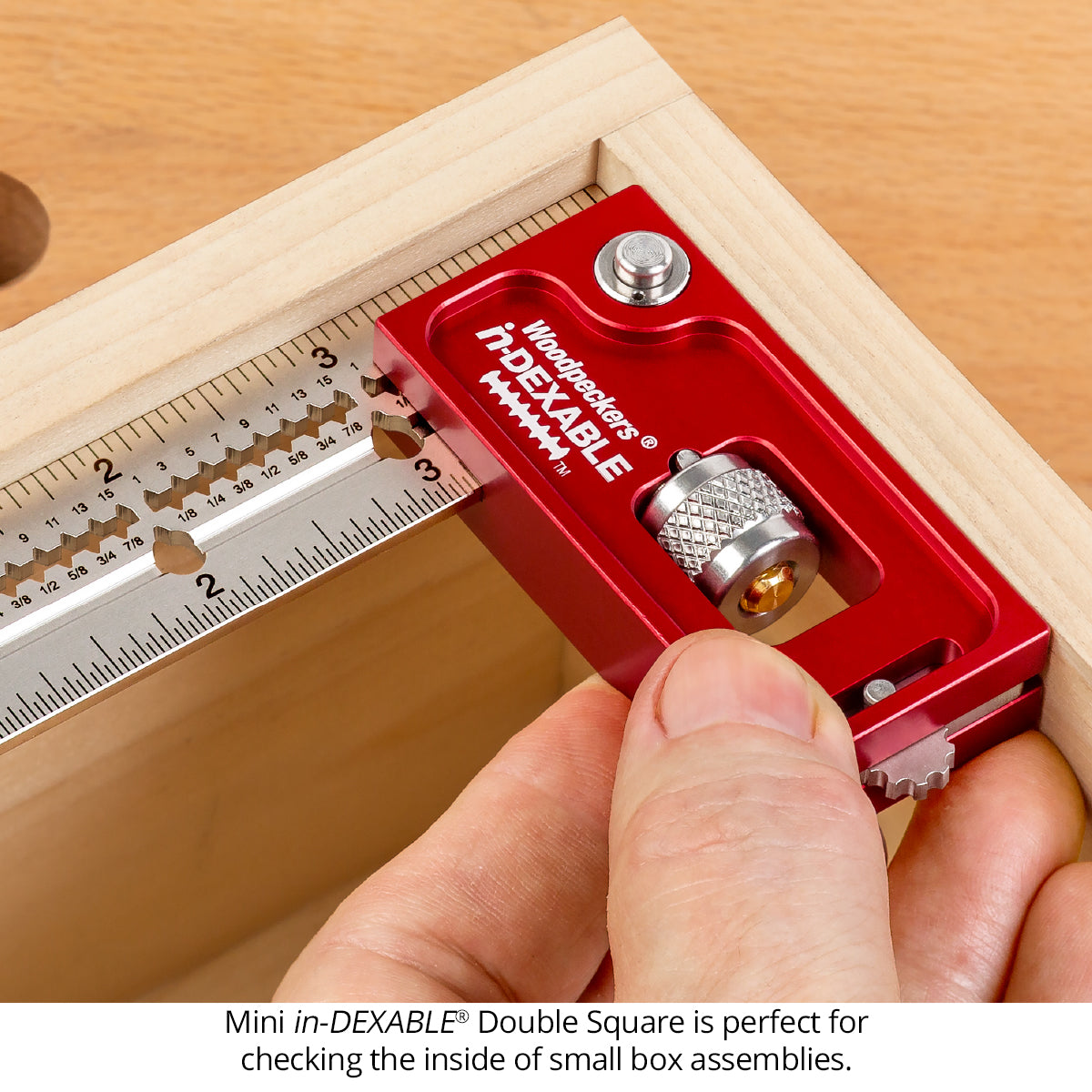

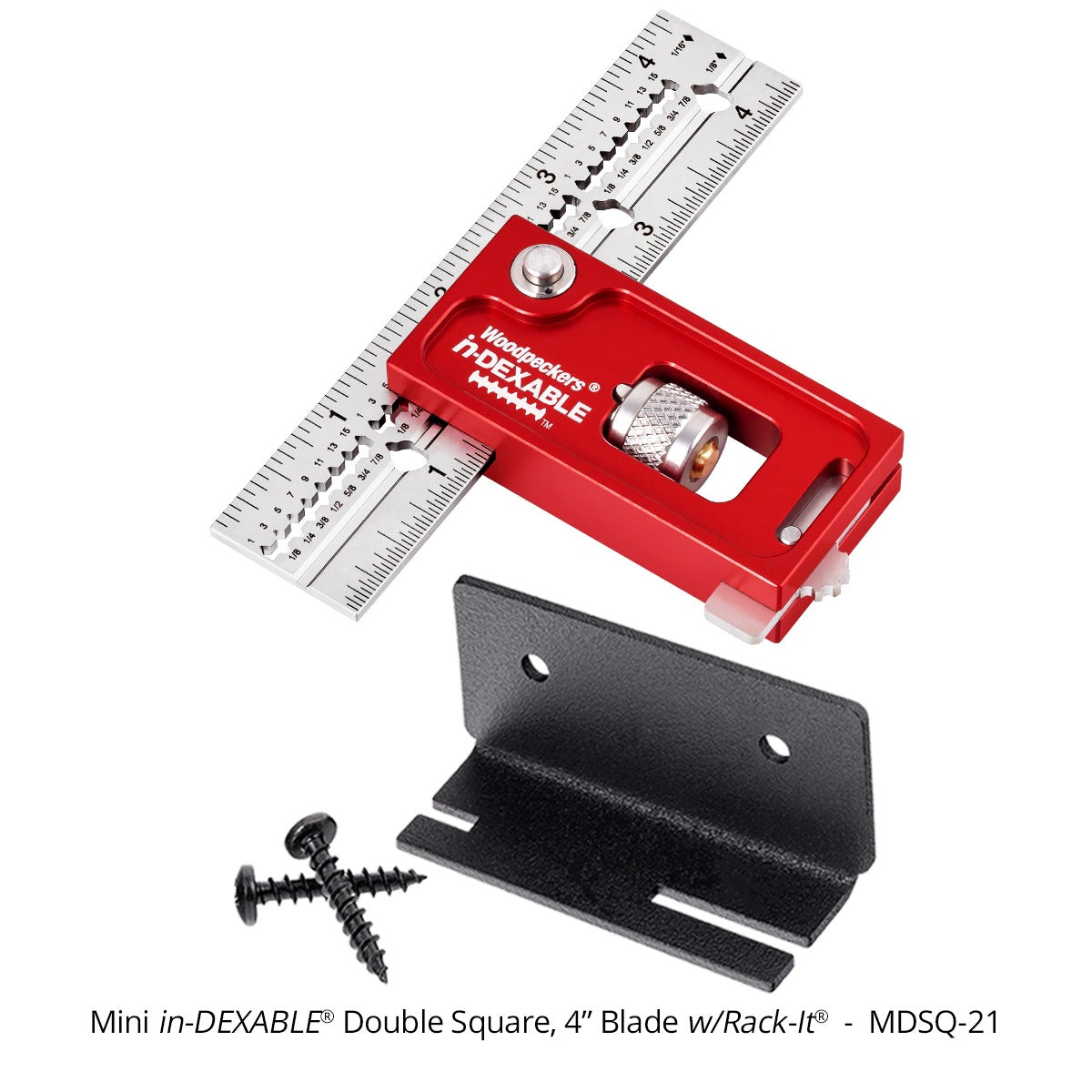

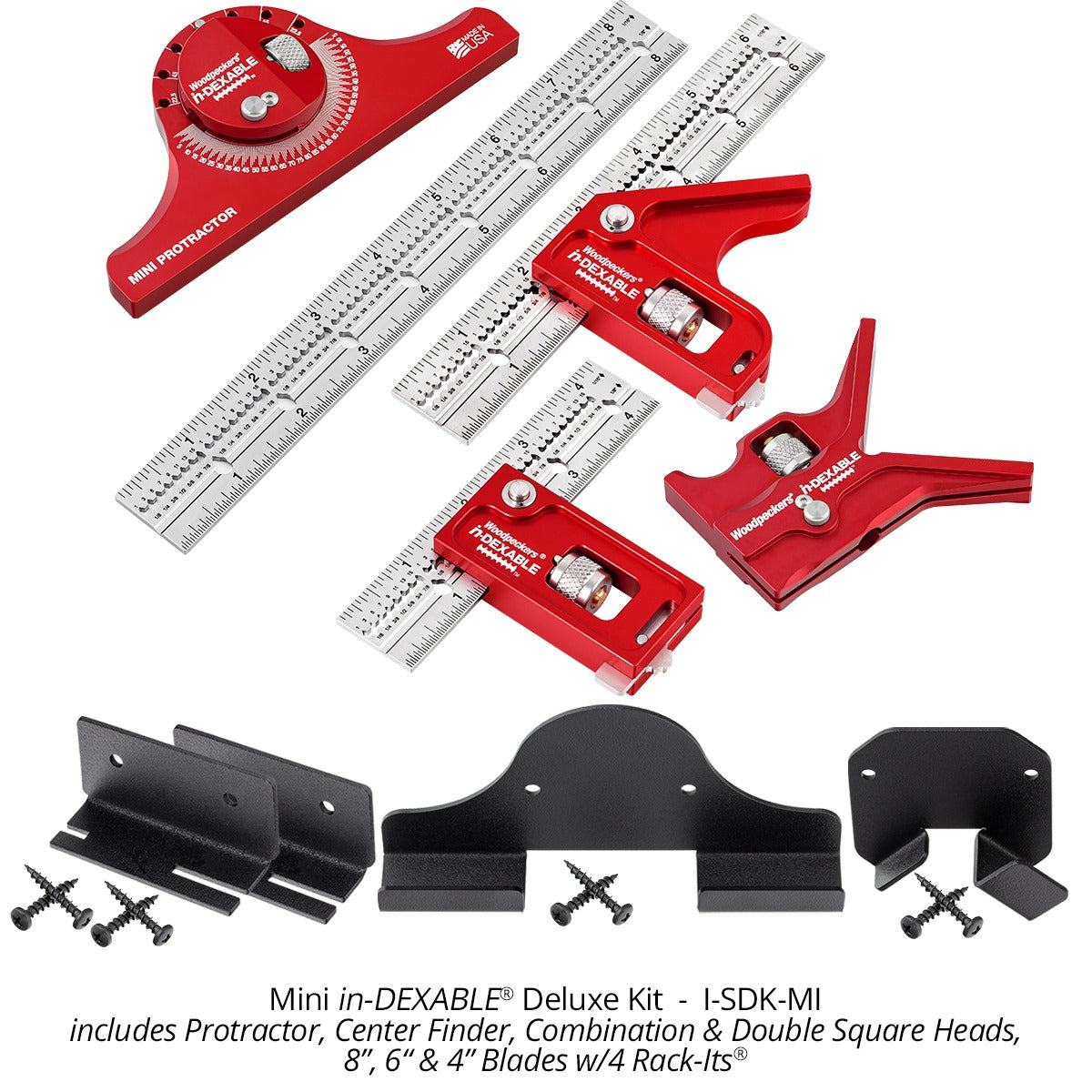

The Mini Combination Square comes with a 6" blade. The Mini Double Square comes with a 4" blade. The Mini Protractor Head includes an 8" blade. And the Mini Centering Head comes with a 4" blade. Of course, all Mini in-DEXABLE blades fit all Mini in-DEXABLE heads.

Like all Woodpeckers products, the MINI in-DEXABLE Combination Square System is precisely machined and carefully inspected in our Strongsville, Ohio factory (just south of Cleveland).
